HYDRO AND AIR EXCAVATORS
SETTING NEW STANDARDS IN EFFICIENT, EASY HYDRO/AIR EXCAVATION
Industry leading hydro and air excavation
Vacall hydro and air excavators provide superior vacuum forces and water and air pressure, making them the industry leader. AllExcavate and AllExcavate2 machines have just one engine, reducing fuel consumption emissions, noise and maintenance.
Choose the AllExcavate or AllExcavate2 to efficiently excavate around water lines, sewer lines and other underground utilities. An optional cold-weather package includes heated cabinetry that encloses the boiler, warming the water for hydro excavation when temperatures drop below freezing.
- Range of power module packages based on customer need
- Positive displacement blowers from 16 inches to 27 inches Hg of vacuum power
- Jetting systems complement the cleaning power with capacity ranges from 50 to 120 gpm and pressures to 3000 psi
- AllSmartFlow CANbus smart controls system standard
- Single engine operation reduces fuel consumption emissions, noise and maintenance
- Boom extends 8’6” with 330° rotation
- Rear-mounted boom front loads debris
- Choose from three boom and hose options to accommodate your preference
- Heavy-duty full-length rubber hose is durable and flexible with gum rubber lining from turret mounted on the debris tank to the pick-up point
- Steel tube-in-tube boom and intake connected to an identical rubber hose elbow that leads to the pick-up point
- Original steel tube-in-tube design with steel elbow boom and intake tube – the industry standard for strength and durability
- Oval shape with cylindrical sides for extra strength and efficient material dumping
- Optional supreme finish galvanized debris tank available with lifetime warranty
- Multi-stage vacuum filtration system has simplified design to reduce maintenance, extend performance and increase working life
- Standard durable powder coat finish
- 10 or 12 yard3 capacities
- 8 yard3 capacities available on 811 models
- Hydraulically driven, variable-speed system has digital control to vary water volume and capacity output
- Available variable water pump produces up to 24.5 gpm with up to 3,000 psi
- Water heater
- System powers a wand, delivering a high-pressure stream to break up material
- Self-wind reel has 75 feet of high-pressure hose
- Optional hose reel has up to 350 feet of high-pressure hose
- Water tanks have lifetime warranty
- Fabricated with high quality aluminum for extra strength
- Available in 1,000 and 1,300 gallon capacities
- 1,100 gallon capacity available on 811 models
- Equipped with interior baffles, water tanks are mounted above the rear fenders to avoid damage from road debris
- Tank position creates positive head pressure to the water pump inlet
- AllExcavate2 Combination Hydro/Air Excavator
- Air compressor produces 185 CFM at 110 or 115 psi
- Dual air water separator and deflector diffusion technology separates fine particles
- Industry leading micronic diffusion filter system protects the blower
DOWNLOAD SPECIFICATIONS & LITERATURE (PDF)

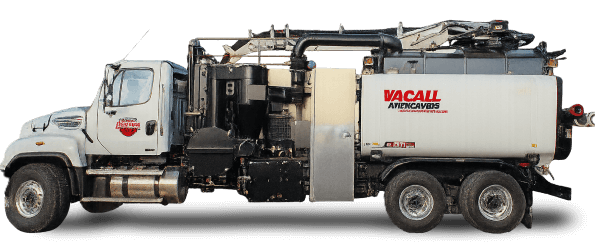

AllExcavate Hydro Excavators reflect the superior water pressure and vacuum forces that have established Vacall as an industry leader, efficiently excavating around water lines, sewer lines and other underground utilities.
The Vacall high-performance AllExcavate2 delivers both water and air excavation to the jobsite on one truck with one engine driving all systems. Vacall’s combination hydro/air excavator gets the job done, even when water isn’t available or allowed by the requirements of the job.
The AllExcavate 811 delivers the power and reliability you expect from Vacall, in a smaller footprint. Get in and out of tight jobs faster with the 8-cubic yard debris tank, 1,100-gallon water tanks, and an overall vehicle length of under 35 feet. The AE 811 delivers vacuum forces up to 5,400 CFM at free air and water jetting power of 0 to 25 gpm at 3,000 psi. The AE2 811 adds air pressure modes at 110 psi at 185 CFM or 150 psi at 150 CFM. There is no job, big or small, the AE2 811 can’t handle.
The Vacall AllExcavate with High Dump Option has a unique design that allows the operator to raise the debris tank as much as 76 inches above ground level. This debris tank repositioning enables the AllExcavate to dump material into roll-offs or other containers on the job site rather than traveling to off-site dumping locations.
